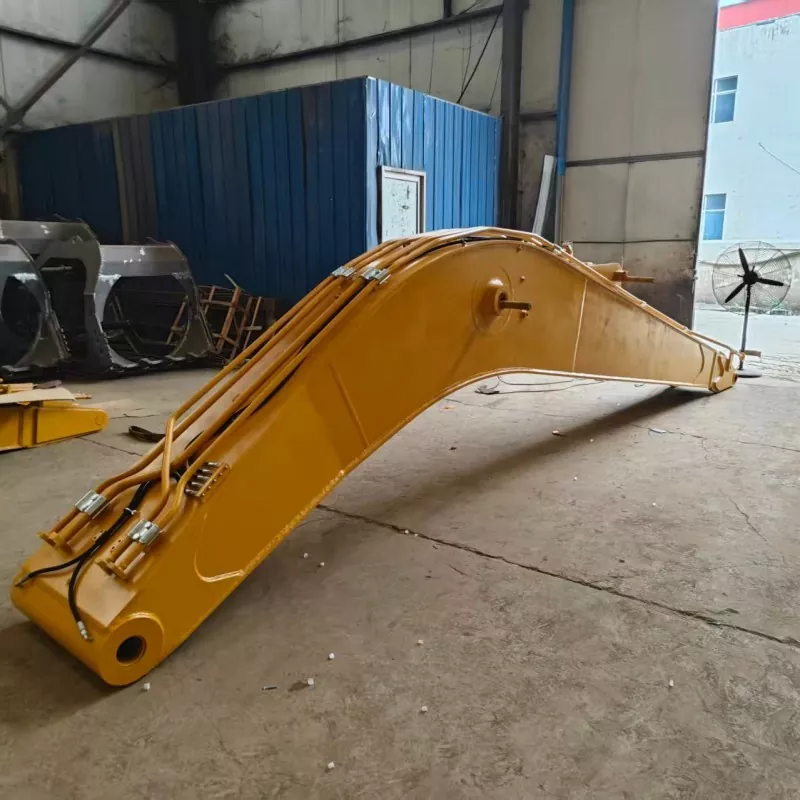

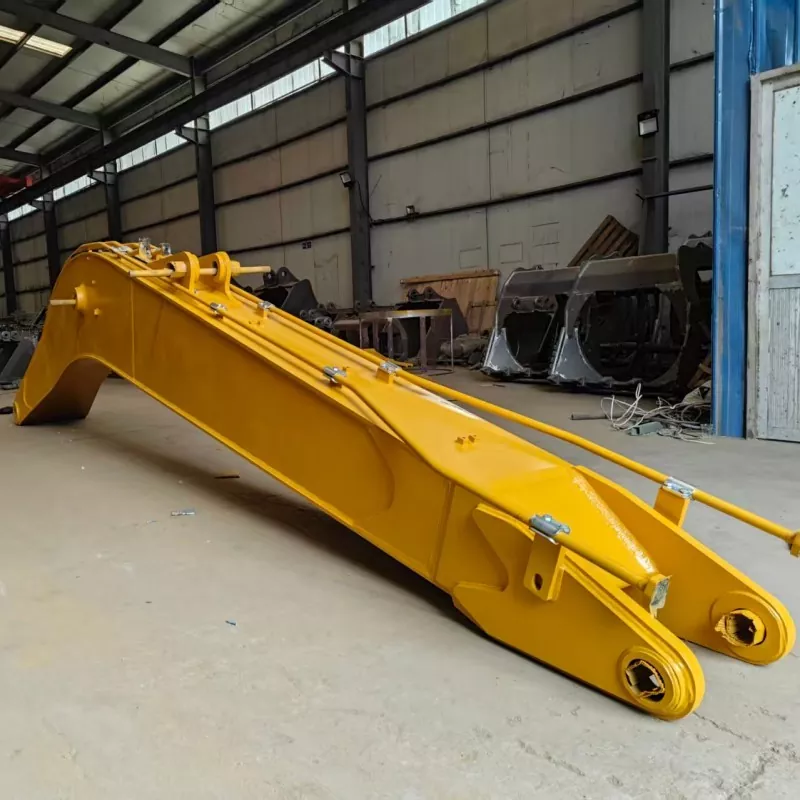

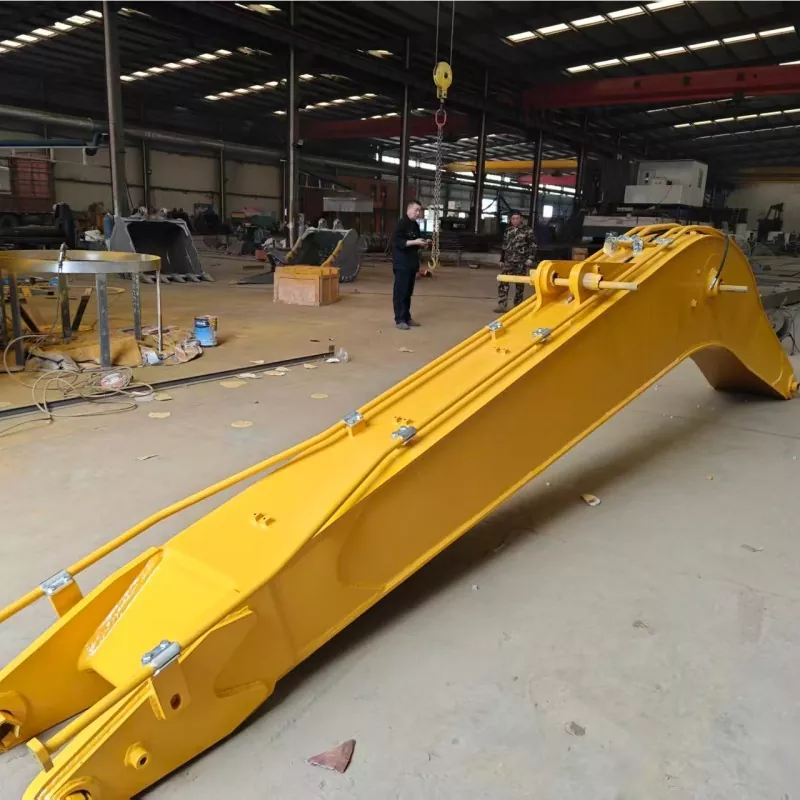

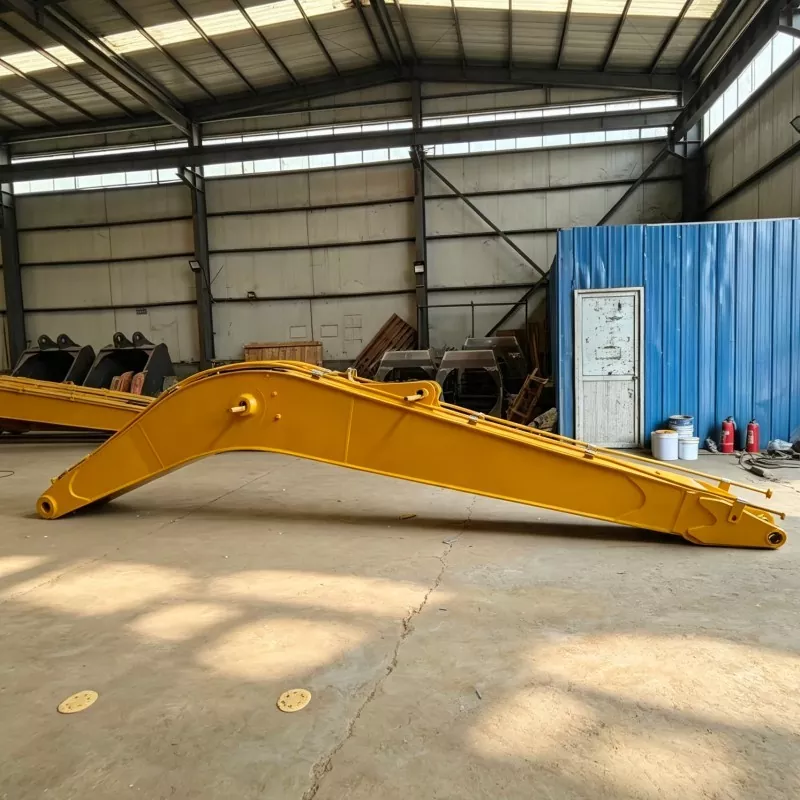

Long Reach Excavator Arm for ZX200

Our Long Reach Excavator Arm for ZX200 is a dedicated extended attachment upgraded for Hitachi ZX200 medium excavator, targeting the biggest drawback of original short sticks: limited digging depth and horizontal reach. Low-cost generic long arms on market usually use thin ordinary carbon steel and manual spot welding. After several months working in muddy river or coastal areas, they easily bend, leak oil or crack at welding seams.

Our arm body is assembled with 16–26mm thick NM400 wear-resistant steel plate, all load-bearing joints are added with thickened reinforcing ribs. Six-axis automatic welding robots complete full penetration welding for every seam, then high temperature annealing eliminates internal metal stress to improve structural stability. All pin holes are processed by precise CNC boring to keep high concentricity, which greatly reduces abrasion of pin sleeves during frequent swinging and digging.

The whole arm surface goes through full sand blasting, one layer anti-rust primer and two layers heavy-duty finish paint, adapting to high humidity, saline and muddy construction environments. As a reliable excavator attachment supplier with independent production workshop, we carry out strict raw material inspection before production and full overload test before shipment to guarantee long service life for outdoor heavy construction.

Product parameters

Real Application Cases & Industry Scenarios

Thailand River Renovation Project – Improving Deep Excavation Efficiency

A Thailand water conservancy contractor purchased 6 sets of Long Reach Excavator Arm for ZX200 for urban river renovation work. The original standard arm could only achieve a digging depth of approximately 6.2 meters, which limited construction efficiency in deep water areas.

After adopting the customized long reach arm, the excavation depth was increased to around 9.8 meters. The project reduced the overall construction period by about 35% and avoided the need for additional temporary operating platforms.

Peru Municipal Road Project – Efficient Slope Trimming Solution

In a municipal road slope shaping project in Peru, the construction team used the Long Reach Excavator Arm for ZX200 to complete high-position and long-distance trimming operations. The extended working range reduced dependence on auxiliary lifting equipment and lowered additional labor costs.

Domestic Lake Dredging Project – Customized Ultra-Long Reach Application

For a domestic lake sediment cleaning project, we provided a customized 17-meter super long version for wide-area dredging operations. Before delivery, all products completed 24-hour continuous load testing to verify structural stability and operating reliability.

Wide Application Across Engineering Fields

The Long Reach Excavator Arm for ZX200 is suitable for various applications including municipal construction, water conservancy projects, port maintenance, farmland pond expansion, road slope repair, and wasteland leveling, providing extended working capability for different excavation requirements.

Product Advantages

Reinforced Structure for Heavy Excavation

The ZX200 Long Reach Arm is designed to overcome common problems found in low-cost extended arms, such as bending during high-load digging, excessive wear at connection points, and reduced durability in harsh environments. Reinforced ribs are added to key stress areas including the arm base and cylinder mounting section to improve overall structural stability.

Precision Connection Design for Longer Service Life

The connection points adopt CNC precision boring technology combined with high-hardness alloy steel bushings, reducing friction between moving parts and improving wear resistance during repeated operation. This design helps maintain accurate fitting and smooth movement after long-term use.

Durable Surface Protection for Outdoor Applications

Before coating, the arm surface undergoes complete sandblasting treatment to remove rust and impurities, ensuring stronger paint adhesion. The anti-corrosion coating system improves resistance against moisture, coastal humidity, and outdoor exposure, helping extend service life.

Factory Quality Control and Global Supply Experience

With 13 years of experience in Hitachi series excavator attachment manufacturing, we provide reliable production control and export service for customers worldwide. Each finished long arm can be supplied with factory inspection records, production images, delivery videos, and load testing data for project verification.

FAQ

Q: Do I need to refit the hydraulic system of Hitachi ZX200 after installing Long Reach Excavator Arm for ZX200?

A: No extra refitting is needed. Our long arm perfectly matches original hydraulic interfaces of ZX200, just install matched pins and hoses for direct use.

Q: Can I customize the total length of this ZX200 long reach arm?

A: Yes, we support customized total length from 10m to 19m based on your construction depth and radius requirements.

Q: How long is the factory warranty of this extended arm?

A: All welded structural parts enjoy 12-month factory warranty; pins, sleeves and seals belong to normal consumable parts without long-term warranty.

Q: Can you provide factory inspection video and overload test documents before shipment?

A: Absolutely, every order supports on-site factory shooting, finished arm continuous load test videos and printed test reports for your check.

Q: Will there be wholesale discounts for bulk orders from contractors and machinery distributors?

A: We provide tiered preferential prices according to order quantity, contact us to get exclusive bulk wholesale quotation.

Customized Long Reach Excavator Arm Solutions

Professional Support for Different Engineering Requirements

For construction companies, machinery rental providers, and engineering parts distributors, we provide customized Long Reach Excavator Arm for ZX200 according to specific project requirements. Custom options include arm length adjustment, surface color selection, and matching accessories such as buckets and hydraulic cylinders.

Reliable Service from Sample Approval to Delivery

We support sample confirmation before bulk production, provide installation manuals, and offer remote technical guidance to help customers complete equipment setup smoothly. Welding structural parts are covered by a 12-month warranty to ensure long-term operation reliability.

Factory Direct Supply for Global Customers

Contact our team to obtain product drawings, load testing information, and factory quotations. For large-volume orders, we provide competitive pricing and professional shipping arrangements to support customers worldwide.
