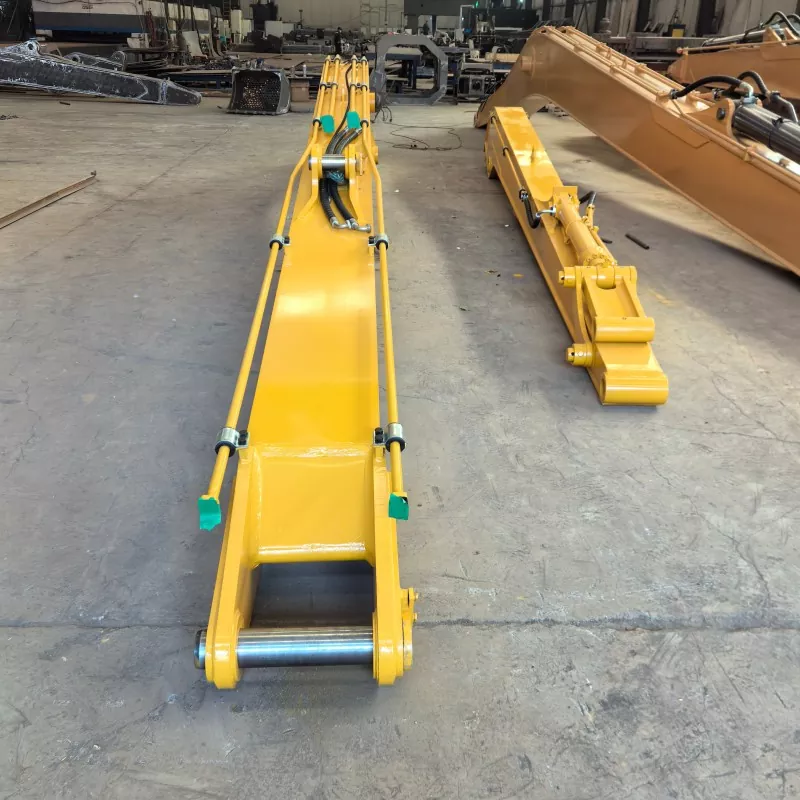

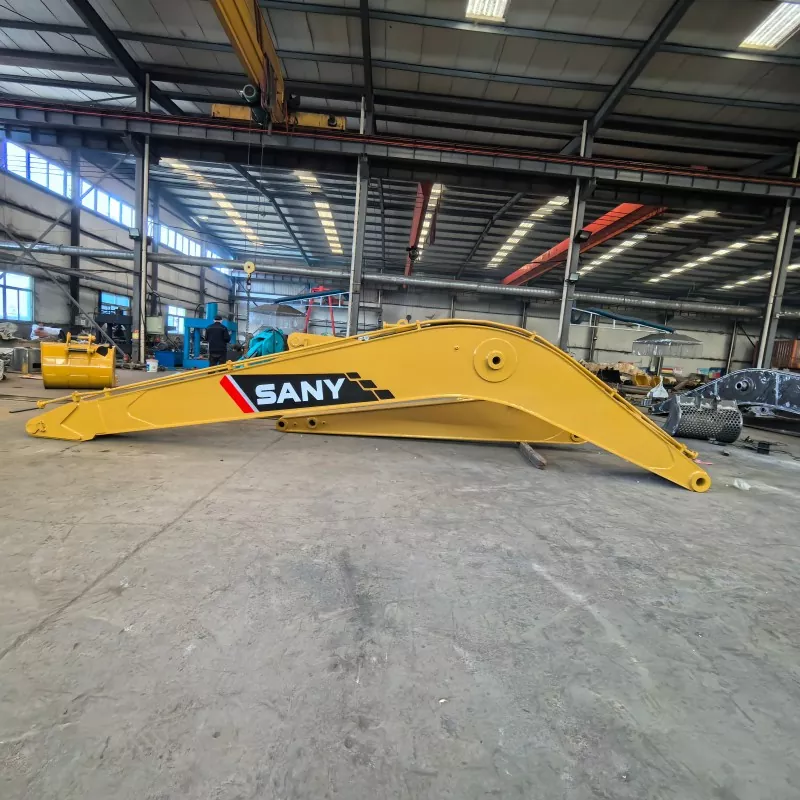

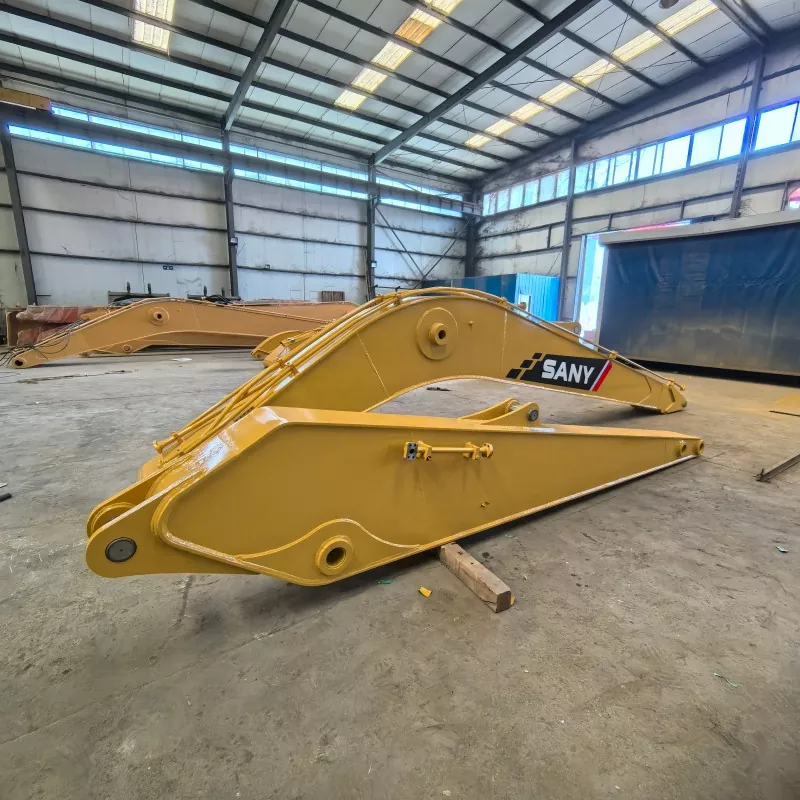

Excavator Extension Arm

In various construction projects such as infrastructure, municipal engineering, water conservancy and building demolition, standard excavator arms have fixed working range and digging depth, resulting in operation blind spots, low construction efficiency and frequent equipment transfer in complex working conditions such as long-distance dredging, ultra-deep foundation pit excavation and high-rise demolition, which greatly increases construction costs and delays the project period.

To solve these universal industry problems, the high-performance Excavator Extension Arm has become an essential accessory for engineering machinery upgrading. With scientifically optimized extended arm structure design, it fully expands the operation boundary of excavators, compatible with all mainstream 12-50 ton excavator models, and can adjust the extension size and arm ratio flexibly according to different construction scenarios.

Material & Craftsmanship

Q355B Wear-Resistant Steel Material

This Excavator Extension Arm is manufactured with high-quality Q355B high-strength wear-resistant manganese steel, providing stronger compression resistance, torsion resistance, and structural stability compared with ordinary low-carbon steel extension arms. It is designed for challenging environments such as river dredging, gravel excavation, and continuous heavy-load operations.

Advanced Welding & Reinforcement Technology

During manufacturing, automatic multi-layer submerged arc welding technology is applied to improve weld strength, while key stress areas are processed with integrated forging technology to enhance overall durability. These processes help reduce structural weak points caused by welding defects and improve long-term operating reliability.

Strict Quality Inspection Process

Each finished extension arm undergoes strict quality inspections, including ultrasonic flaw detection, static load testing, and high-low temperature fatigue testing, ensuring stable performance before delivery. The optimized lightweight structural design maintains sufficient strength while helping reduce additional load on the excavator and improve working efficiency.

Application Scenarios

Municipal Engineering & Water Conservancy Projects

The Excavator Extension Arm is designed for convenient installation and operation, featuring a standard connection interface that allows quick replacement without modifying the excavator main body. It provides flexible working solutions for different excavation depths and special operating environments.

In municipal engineering projects, it is suitable for river dredging, slope maintenance, and underground pipeline excavation where extended working distance is required. In water conservancy construction, the extension arm helps complete deep excavation and cleaning operations for reservoirs, lakes, and river channels.

Deep Excavation & Infrastructure Construction

For infrastructure projects, it supports deep foundation pit excavation, underground garage construction, and other deep excavation applications where standard excavator arms cannot reach the required working depth.

Safe Demolition Operations

In demolition operations, the extended working radius improves operational safety by allowing operators to maintain a safer distance during high-level structure dismantling.

Customized Solutions for Different Working Conditions

According to different project requirements, customized solutions are available, including arm length adjustment, reinforced connecting shafts, thicker pipe walls, and matching bucket rod configurations to meet specific working conditions.

Real Project Cases

Shanghai Metro Deep Excavation Pit | Hitachi ZX330LC 18-meter Extended Two-Section Boom Excavator

1. Project Overview: The excavation pit for a station on Shanghai Metro Line 11 reached a depth of 17.2 meters, with numerous and continuous pit walls and support beams. Standard boom excavators suffered from obstructed visibility, inability to reach the pit bottom, and frequent collisions with the support structure, causing delays for Hitachi Construction Machinery.

2. Equipment Configuration: Hitachi ZX330 excavator, customized 18-meter extended boom, maximum digging depth of 17.22 meters, with a skid-steer rotating cab featuring the extended boom.

3. Solution: The extended boom provided sufficient vertical digging depth, eliminating the need for smaller excavators to enter the pit, saving on equipment transportation costs; the skid-steer rotating cab provided adjustable visibility, preventing damage to the pit's support structure.

Results: Single bucket loading capacity increased by 30%, excavation time was reduced from 42 days to 28 days, and support maintenance costs were lowered.

Differentiation

1. Material Differentiation

Most manufacturers in the industry use standard Q235 steel, which is prone to rusting, deformation, and limited load-bearing capacity.

We adopt high-strength Q355B manganese steel, improving overall strength by approximately 40%, with superior wear resistance and impact toughness, making it suitable for heavy-duty and harsh working conditions.

2. Process Differentiation

Conventional products typically rely on basic welding processes without systematic quality inspection, which may lead to structural risks.

Our products adopt an integrated forging structure combined with multi-layer precision welding, supported by triple non-destructive testing (NDT), ensuring weld integrity and minimizing cracking risks.

3. Compatibility Differentiation

Most peer products are standardized with fixed specifications and limited compatibility with machine models, making it difficult to meet diverse application needs.

We support full-tonnage excavator customization and provide non-standard size solutions based on different equipment models and special working conditions, ensuring broader compatibility and application range.

4. Anti-corrosion Differentiation

Conventional products are usually treated with simple painting, which is prone to peeling and rust over time.

We use sandblasting pretreatment combined with double-layer heavy-duty anti-corrosion coating, significantly improving surface protection and extending outdoor corrosion resistance life by more than 3 times.

FAQ

Q1: What working scenarios are suitable for an excavator extension arm?

A: Excavator extension arms are widely used in river dredging, slope trimming, high-rise demolition, pond cleaning, highway ditch excavation and coastal silt removal. It extends the machine's original working radius, allowing construction without moving the excavator frequently, especially ideal for deep and far-distance operations that standard arms cannot reach.

Q2: How to confirm whether an extension arm fits my excavator?

A: First confirm your excavator's tonnage, original boom mounting size and hydraulic system parameters. Our factory customizes extension arms according to different brands including Sany, XCMG, Caterpillar, Komatsu and Hitachi. We will match supporting counterweights and adjust hydraulic flow to ensure stable digging and lifting performance after installation.

Q3: What anti-wear and anti-corrosion treatments does the excavator extension arm have?

A: The arm body adopts high-strength wear-resistant steel plate. The surface is treated with shot blasting plus thick marine anti-rust paint to resist mud and water corrosion. All pin shafts and shaft sleeves use quenched alloy steel with sealed lubrication structures, effectively reducing abrasion during long-term earth and water operation.

Discuss Your Excavator Extension Arm Requirements

Customized Solutions for Long-Reach Excavation Projects

With over 10 years of experience in construction machinery attachment manufacturing, XINGCHUANG specializes in the design, customization, and production of excavator extension arms. We focus on providing reliable long-reach solutions for complex engineering applications, helping customers improve working range and operational flexibility.

Supported by complete manufacturing facilities, professional inspection processes, and experienced technical teams, we provide extension arms tailored to different excavator models, working depths, and project conditions. Our products have been supplied to customers in more than 60 countries and regions, covering various construction and engineering applications.

From project evaluation and structural design to production support and installation guidance, our team provides professional assistance throughout the cooperation process. Whether for standard requirements, customized projects, or bulk orders, we can offer suitable attachment solutions based on your application needs.
