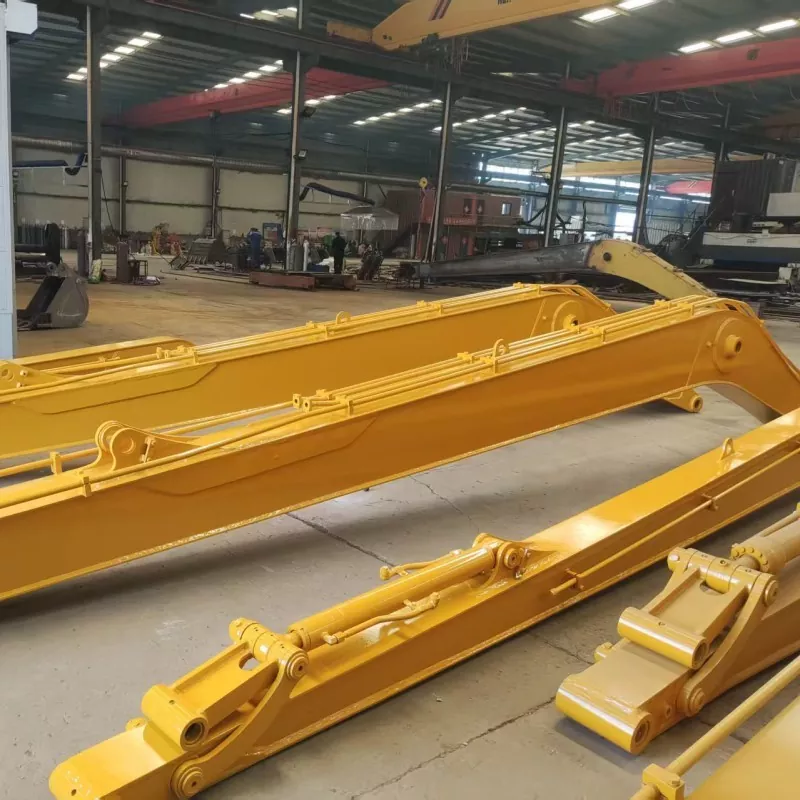

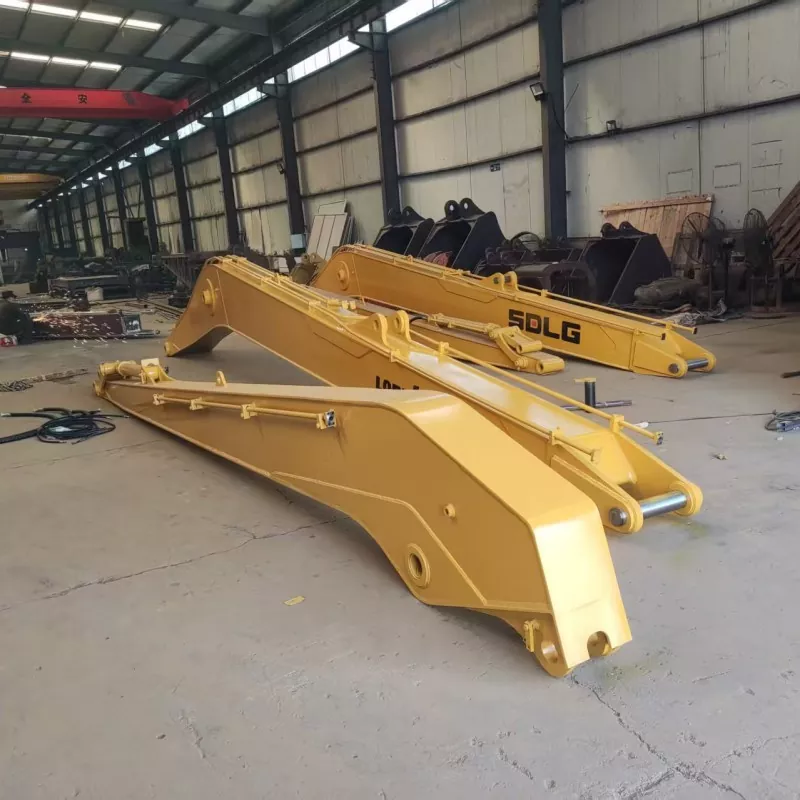

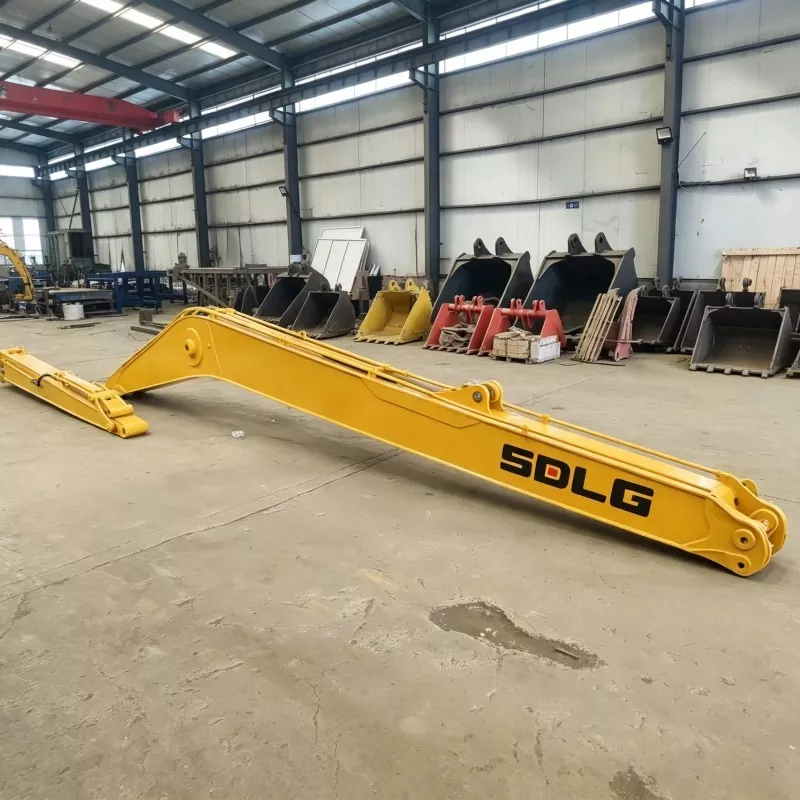

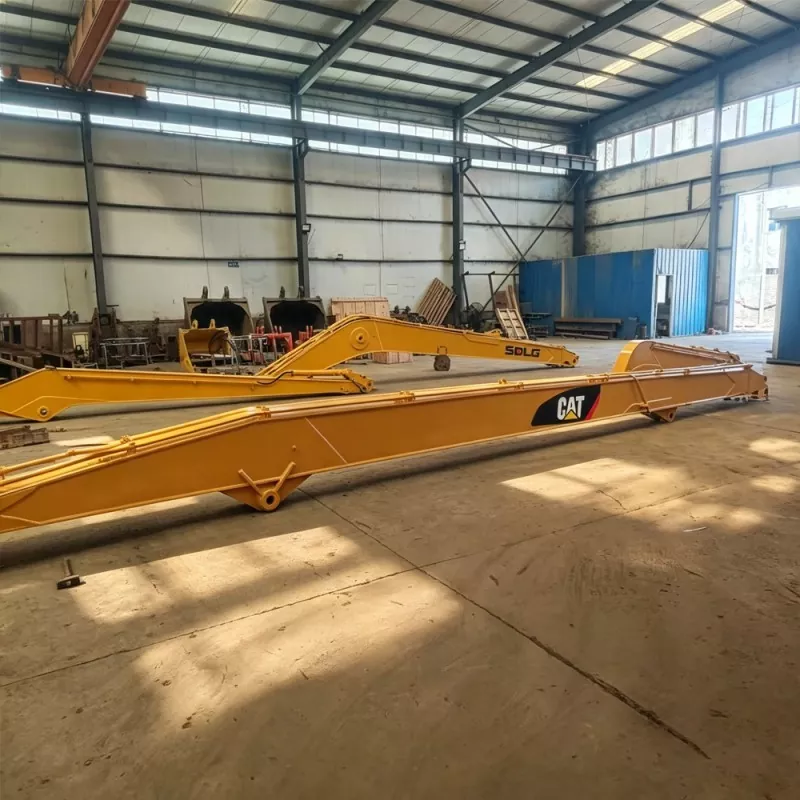

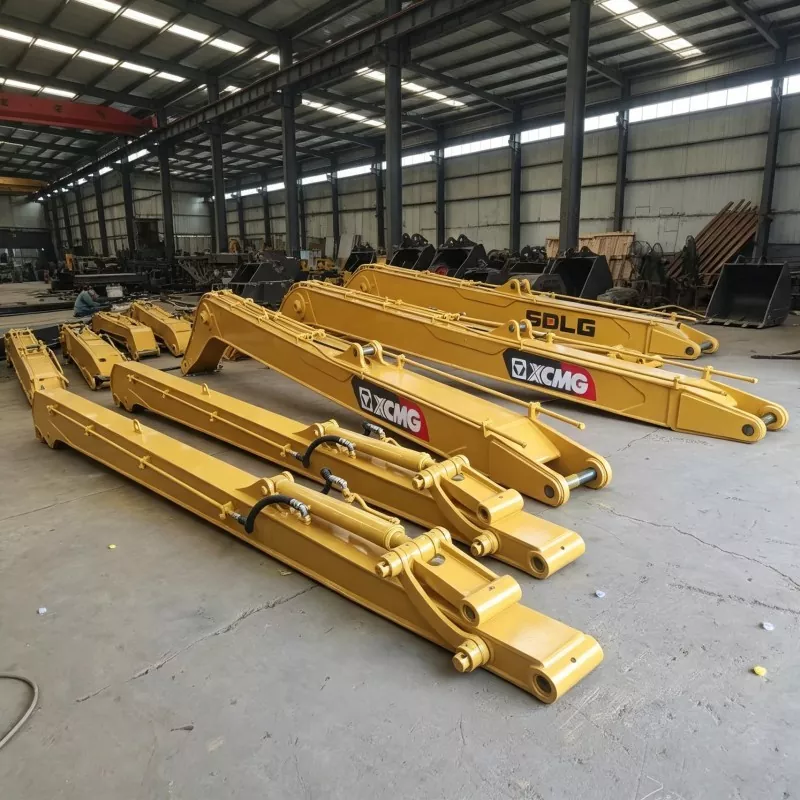

Excavator Long Reach Boom Arm

In complex outdoor construction scenarios of construction machinery, the original standard boom and arm of ordinary excavators often have many pain points, such as small operation coverage, inability to reach deep water areas, and low construction efficiency in high foundation pit and long-distance operations, which greatly restrict the progress of engineering construction. To solve the industry construction problems targeted, our factory independently develops and produces Excavator Long Reach Boom Arm.

By optimizing the mechanical structure design, it effectively extends the digging radius and working height, perfectly adapting to the construction needs of various special working conditions. Compared with traditional standard arms, this long reach arm abandons the templated structural design and carries out differentiated structural reinforcement according to different construction scenarios, fundamentally solving the problems of easy deformation, insufficient bearing capacity and poor stability of long-distance operation of ordinary arms.

Material & Craftsmanship

Built for Extended-Reach Excavation Loads

The Excavator Long Reach Boom Arm uses national standard Q355B high-strength manganese steel as the main structural material, with reinforced thickness in key load-bearing sections. The optimized steel structure provides excellent resistance against bending, compression, and twisting forces when the excavator performs deep excavation or long-distance operations.

Stress-Relieved Manufacturing for Long-Term Stability

During production, automatic robotic welding and secondary annealing stress relief technology are applied to improve weld consistency and eliminate internal stress accumulation. This process enhances the fatigue resistance of the boom arm and helps maintain structural stability during repeated heavy-duty working cycles.

Accurate Connection Design for Excavator Matching

The pin connection areas are precision-machined with high-accuracy boring equipment and fitted with sealing components to ensure smooth installation and reliable operation. The boom arm is compatible with 12-50 ton excavators from major brands including Komatsu, Caterpillar, Sany, and XCMG, reducing installation difficulty and improving equipment adaptability.

Performance Protection in Difficult Job Sites

Designed for challenging environments such as deep water, muddy areas, sand and gravel conditions, and high-load excavation projects, the reinforced structure helps prevent common failures including arm deformation, weld cracking, and excessive wear, supporting stable operation over long service periods.

Application scenarios

River and Water Conservancy Engineering

Suitable for river dredging, deep water river widening, river bank trimming and reservoir dredging. It solves the problem that standard arms cannot reach deep water areas, and can complete long-distance operations without equipment wading;

Municipal Infrastructure Engineering

Used for deep foundation pit excavation, underground pipe network construction, urban slope trimming and old house demolition, adapting to narrow urban sites and high-drop construction scenarios;

Port and Terminal Engineering

Applied to port channel dredging, terminal foundation reinforcement and coastal beach finishing, meeting the needs of large-radius and high-load marine construction;

Highway and Mining Engineering

Adapted to highway slope repair, mountain leveling and shallow mine stripping, efficiently completing large-scale leveling operations and improving construction coverage.

Real Project Cases

Vietnam River Regulation Project – Batch Delivery for Deep Water Operations

In 2025, XINGCHUANG supplied 20 sets of customized 25-ton Excavator Long Reach Boom Arms for a river regulation project in Vietnam. The boom arms were extended by 6 meters and specially configured for Mekong River dredging and widening operations.

Compared with conventional standard arms, the customized long reach design increased the operating radius by approximately 40% and improved daily construction efficiency by around 35%. The equipment effectively solved challenges caused by deep water working conditions, limited access areas, and low excavation efficiency.

Jiangsu Municipal Project – Customized Solution for Urban Construction

For a municipal engineering project in Jiangsu, China, we provided 5 sets of customized 30-ton Excavator Long Reach Boom Arms for deep foundation pit excavation and slope trimming applications.

According to the requirements of narrow urban construction environments, the arm structure was optimized to achieve a better balance between stability and flexibility. The equipment successfully supported high-drop and complex excavation tasks while maintaining reliable operation performance, leading to continued cooperation with the customer.

Quality Verification Before Delivery

Before shipment, each long reach boom arm undergoes load testing, wear resistance evaluation, and compression performance inspection to ensure stable operation and reliable performance for different engineering applications.

Strengths & Differentiation

Material Advantage

Most peers adopt ordinary carbon steel which is easy to deform and wear; our products adopt Q355B manganese steel with 50% higher strength, better wear resistance and longer service life of more than 2 years;

Process Advantage

Simple welding of peers is prone to cracking and stress concentration; our seamless robot welding + annealing stress relief technology avoids arm deformation and cracking, suitable for long-term heavy-load operation;

Compatibility Advantage

Peers' long arms have poor versatility and require modification; our products with precise boring processing can be directly installed for all brand models without modification with 100% compatibility;

Customization Advantage

Most peers only provide standard spot goods that cannot adapt to special working conditions; we support personalized customization of full sizes and parameters to fit all kinds of niche construction scenarios.

FAQ

Q1: Is the long reach boom arm compatible with all brands of excavators?

A: Yes. The product is precisely processed according to the parameters of various brand excavators, compatible with 12-50 ton mainstream models such as Komatsu, Caterpillar, Sany and XCMG, which can be directly installed without drilling and modification.

Q2: Can the length be customized according to construction scenarios?

A: Personalized customization is supported. Different extension sizes of 3-12 meters can be customized according to working radius, working height and excavator tonnage, and exclusive adjustment of thickness and accessory configuration is also available.

Q3: What is the operation stability of the long reach arm? Is it easy to deform?

A: It has excellent stability. Adopting high-strength manganese steel and stress relief technology with thickened core stress parts, it has passed multiple load tests, no deformation and cracking under normal working conditions, and can operate stably for a long time.

Q4: What about the factory delivery cycle and after-sales warranty?

A: Standard spot goods are delivered in 3-5 days, and customized products in 7-15 days; all products are equipped with 12-month warranty, and lifelong technical consultation, installation guidance and maintenance support are provided.

Long Reach Boom Arm Solutions

Customized Attachments for Extended Excavation

XINGCHUANG provides Excavator Long Reach Boom Arm solutions for deep excavation, dredging, demolition, and infrastructure projects. Based on different excavator models and working conditions, we offer customized designs to improve working range and operational efficiency.

With complete production facilities and strict quality control, our long reach boom arms are manufactured for stable performance in demanding construction environments. Contact our team for product details, technical support, and customized recommendations.
