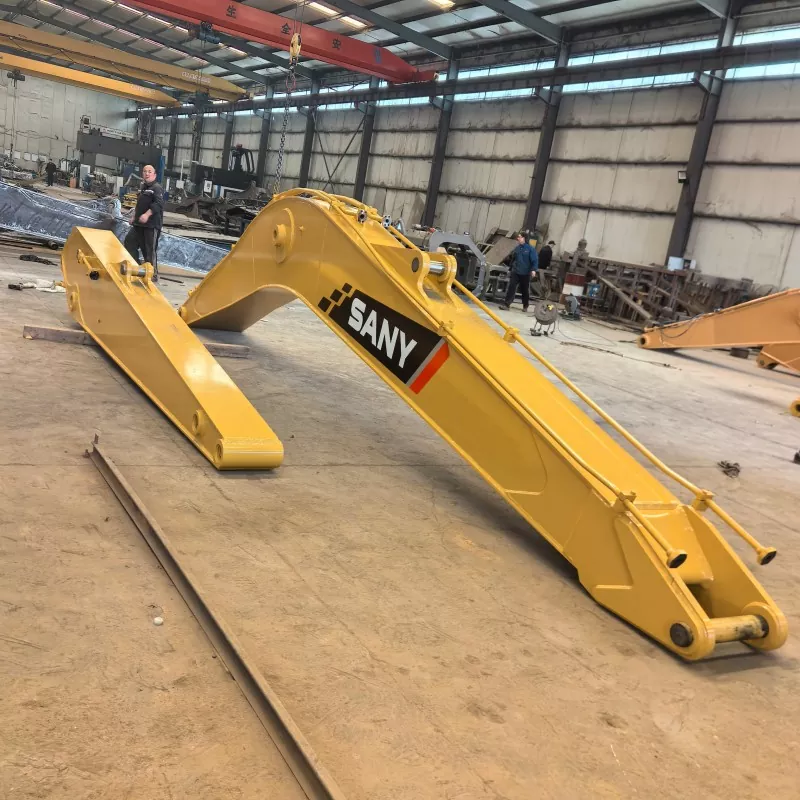

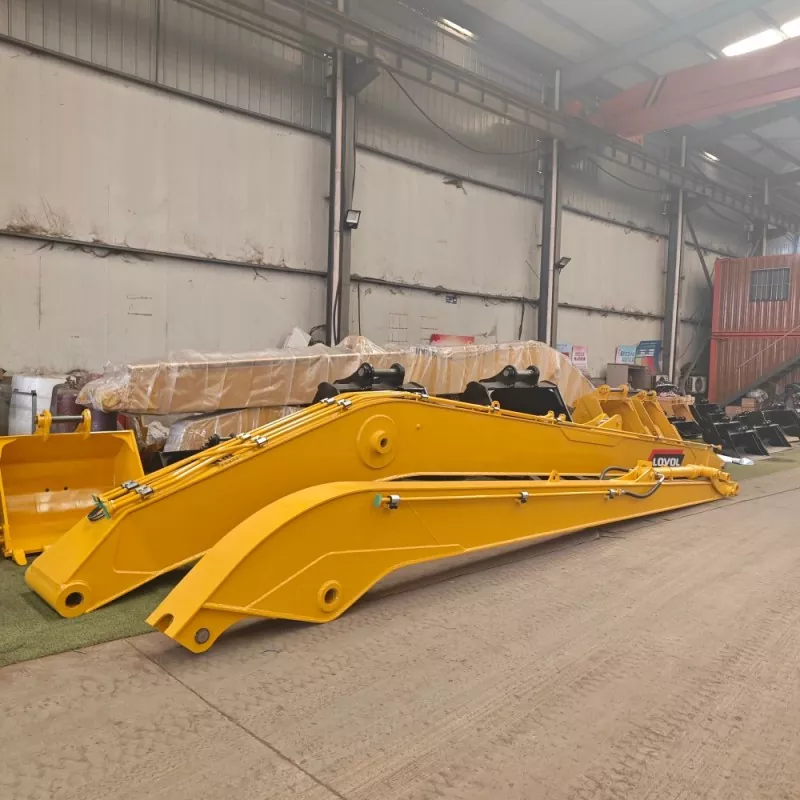

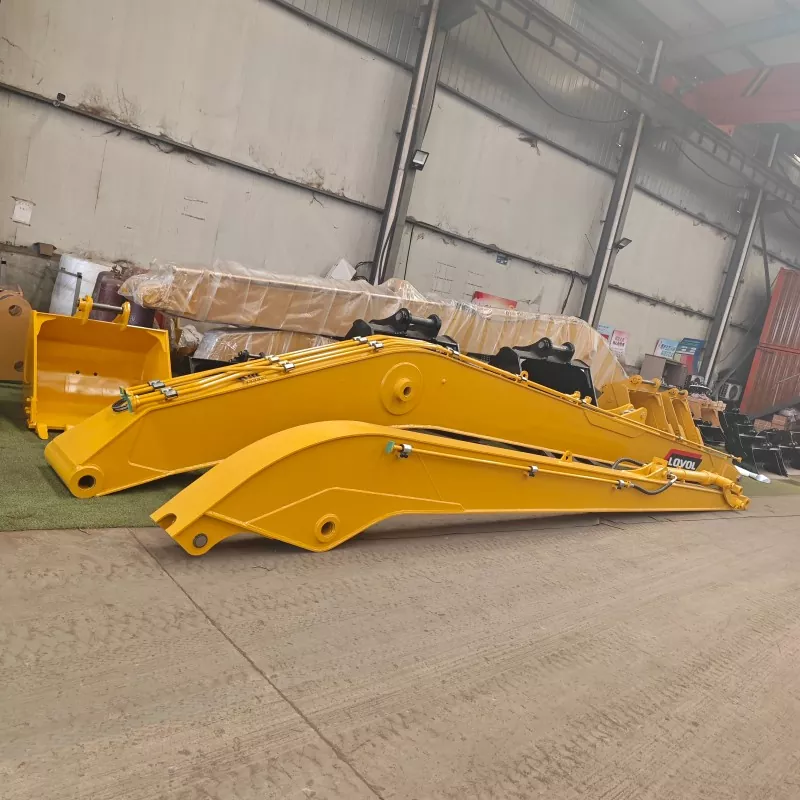

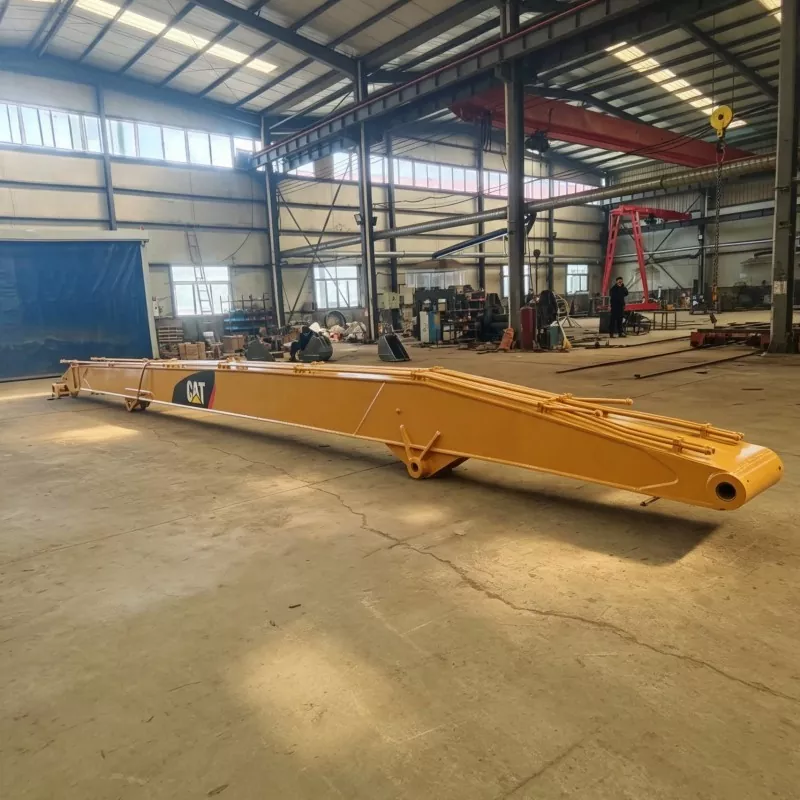

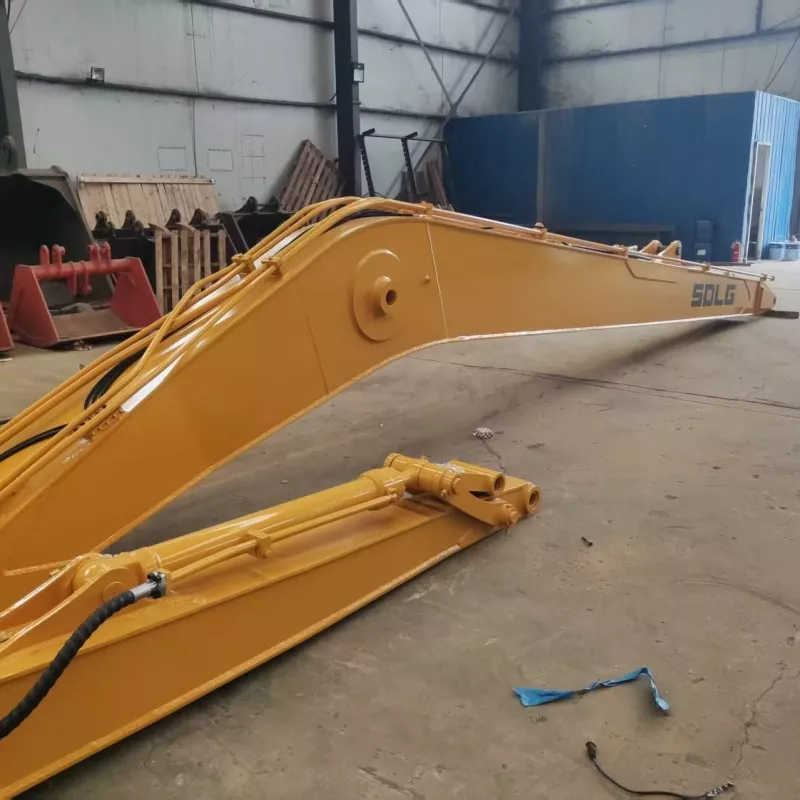

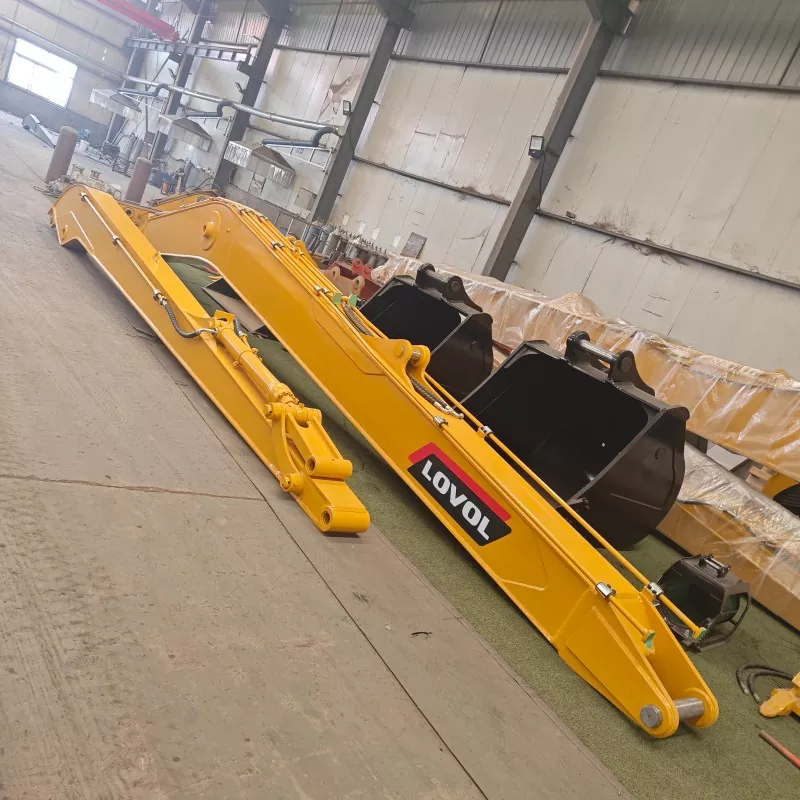

Excavator Extended Arm Attachment

In modern engineering construction, standard excavator arms often fail to meet the requirements of long-span, deep-depth and special terrain operations, including municipal river dredging, deep foundation pit excavation, high-rise building demolition and slope trimming. Our Excavator Extended Arm Attachment is a customized engineering accessory developed for all tonnage excavators, fully compatible with 12-50 ton excavator models. It can adjust the extension length and arm structure according to working conditions, completely breaking the operation limitations of standard arms and greatly expanding the construction range of excavator equipment.

Material & Craftsmanship

High-Strength Steel for Heavy-Duty Working Conditions

The Excavator Extended Arm Attachment is manufactured with high-strength Q355B manganese steel combined with reinforced wear-resistant steel plates, providing excellent resistance to bending, twisting, and impact during long-reach excavation operations. Compared with conventional extension arms made from ordinary low-carbon steel, the optimized material structure delivers better durability under continuous heavy-load working conditions.

Integrated Manufacturing Process for Structural Reliability

Key stress-bearing areas adopt integrated forging technology to improve overall strength and reduce potential weak points caused by traditional splicing structures. The production process includes multiple non-destructive flaw detections, static load-bearing tests, and high-low temperature fatigue tests to ensure stable performance in different operating environments.

Enhanced Durability for Long-Term Operation

Through reinforced structural design and precision manufacturing, the Excavator Extended Arm Attachment provides stronger compression resistance, torsion resistance, and wear resistance. It is suitable for deep excavation, long-distance operation, and continuous outdoor construction, helping reduce deformation risks and maintenance frequency.

Application Scenarios

River Dredging and Water Conservancy Projects

In river dredging and water conservancy construction, the extended arm increases the excavator's working range, allowing operators to complete deep excavation and long-distance cleaning tasks with fewer equipment movements and improved operational efficiency.

Building Demolition Applications

During high-level demolition projects, the increased operating radius allows excavators to maintain a safer distance from unstable structures, reducing operational risks while improving demolition flexibility and working efficiency.

Deep Foundation Excavation and Infrastructure Construction

For deep foundation pits, underground construction, and infrastructure projects, the attachment provides additional excavation depth and better access to restricted areas, supporting accurate earthwork excavation and slope trimming operations.

Customized Solutions for Different Excavators

Based on different project requirements, XINGCHUANG provides customized options including arm length adjustment, pipe thickness optimization, connecting shaft design, and bucket rod matching to ensure better compatibility with various excavator models and working conditions.

Real Project Cases

Case 1 (Bulk Project): In the 2025 Thailand municipal river dredging project in Southeast Asia

The customer purchased 20 sets of 20-ton Excavator Extended Arm Attachments for urban river widening, sludge cleaning and slope reinforcement. The customer reported that after replacing with our extended arms, the single operation depth of the equipment increased by 60%, no frequent equipment transfer was needed, and the construction efficiency doubled, perfectly solving the construction difficulties caused by narrow rivers and excessive water depth.

Case 2 (Custom Project): In the 2024 Angola large-scale infrastructure foundation pit project in Africa

The customer customized 18-meter super-long Excavator Extended Arm Attachments for 40-ton excavators, used for 15-meter deep foundation pit earthwork excavation. Aiming at the local harsh working conditions with more sand and heavy load, we thickened the arm pipe wall and strengthened stress nodes. The product operated with zero deformation and zero failure, successfully completed the construction period, and obtained long-term fixed procurement cooperation from the customer.

Differentiation

1. Material Differentiation

Most peer manufacturers adopt ordinary Q235 steel which is easy to rust and deform with poor bearing capacity; our Q355B manganese steel improves strength by 40%, wear-resistant and durable for heavy-load harsh conditions.

2. Process Differentiation

Ordinary products only have basic welding without detection; our products adopt integrated forging + multi-layer welding with triple non-destructive testing to eliminate weld cracking risks.

3. Compatibility Differentiation

Peer products are mostly fixed specifications with limited applicable models; we support full-tonnage excavator customization and non-standard sizes for special working conditions.

4. Anti-corrosion Differentiation

Ordinary products with simple paint are easy to peel and rust; our double-layer heavy anti-corrosion paint after sandblasting improves outdoor anti-corrosion life by more than 3 times.

FAQ

Q1: Can I customize the size of the excavator extended arm attachment?

A: Yes. We can customize extended arms with lengths from 10m to 28m according to excavator tonnage, construction scenarios and operating depth, and support personalized customization of pipe diameter, connection structure and supporting accessories, providing free working condition adaptation solutions.

Q2: Is the extended arm difficult to install? Does it fit all excavators?

A: It adopts standard docking interface with easy disassembly and no equipment modification required, easy to operate. It fits 12-50 ton mainstream brand excavators (Caterpillar, Komatsu, Sany, XCMG, etc.), and customized interfaces are available for non-standard models.

Q3: What is the product warranty period?

A: The whole machine warranty is 18 months, and core stress parts warranty is 2 years. We provide lifelong maintenance consultation and accessory replacement services, with professional after-sales team and remote technical guidance for overseas projects.

Q4: Can you provide samples and factory test reports?

A: Sample application is supported. All orders are equipped with complete factory mechanical test reports, material inspection reports and qualification certificates to ensure traceable product quality.

Optimize Your Excavation Reach with Customized Extension Arms

Solutions Designed for Deep and Hard-to-Reach Operations

When standard excavator configurations cannot reach required working depths or distances, XINGCHUANG provides extended arm solutions designed to expand machine capability. Our Excavator Extended Arm Attachments help contractors complete deep excavation, dredging, demolition, and infrastructure projects with improved flexibility and operational range.

Every project has different requirements for arm length, excavator tonnage, load capacity, and working environment. Our engineering team evaluates actual operating conditions and provides suitable structural designs to ensure reliable performance without affecting excavator stability.

From individual replacement needs to large-scale engineering applications, we support customers with technical communication, attachment selection assistance, and project-based customization services to help achieve efficient excavation performance.
